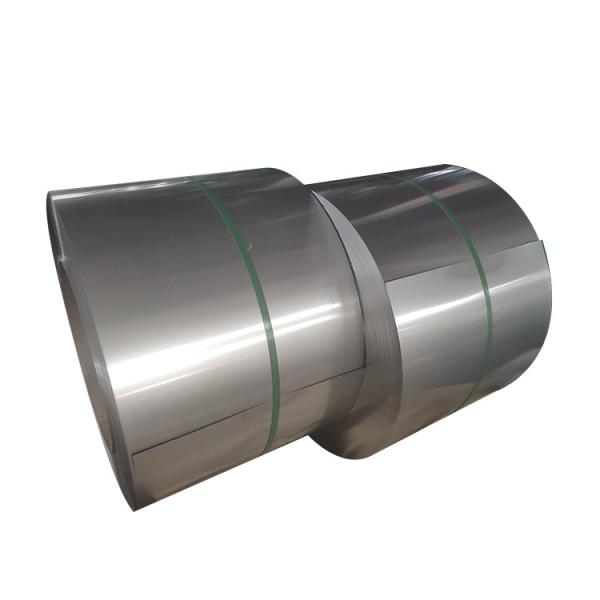

Precision Stainless Steel Strip Grade 201 ASTM EN JIS

Product Categories

Wuxi Benchmark Special Steel Co.,Ltd

Contact Now

Precision Stainless Steel Strip Grade 201 ASTM EN JIS

Type : Stainless Steel Strip

Steel Grade : Stainless Steel J1, J2, J4, 201, 202, 301, 304, 304H, 304L, 309, 309S, 310, 310S, 316, 316L, 316Ti, 321, 321H, 347, 409, 410, 410S, 420, 430, 441, 904L

Length : coil type or it can be produced as customer requirements

Thickness : 0.03mm-3.0 mm

Standard : ASTM/EN/JIS

Width : 1.5mm-600 mm

Processing Service : Bending, Welding, Decoiling, Punching, Cutting, Moulding

Application : Construction,Kitchenware,Medical Instruments,Industry,Decoration

Contact Now

Precision Stainless Steel Strip Grade 201 ASTM/EN/JIS Standard

201 Stainless Steel Strip Specifications

Grade: 201
Standard: ASTM/EN/JIS
Thickness: 0.03mm-3.0 mm
Width: 1.5mm-600 mm
Length: coil type or it can be produced as customer requirements
Surface Finish: NO.1, 2B, 2H(Rerolled Bright), BA, No.4, 8K (Mirror), HL (Hairline), Polishing Bright, etc
Edge: Mill Edge, Slit Edge, Deburred Edge, Round Edge, V Type Edge

201 Stainless Steel Strip Introductions

Grade 201 stainless steel strip is a lower-cost alternative to the conventional Cr-Ni austenitic stainless steels, such as 304 strips.
About half of the nickel content of 304 is replaced with alloy additions of manganese and nitrogen. This results in a higher strength than 304.
201 stainless steel strip has relatively lower ductility and formability compared to 301 stainless steel strip.
Grade 201 also has good welding characteristics and low temperature properties.

201 Stainless Steel Strip Applications

Grade 201 stainless steel strip has good formability and corrosion resistance and this makes it suitable for below applications such as kitchen equipment and catering equipment.
The good strength ensures suitability in applications such as stainless steel banding straps, clamps, brackets and cable ties.

201 Stainless Steel Strip Chemical Composition

The chemical components of grade 201 stainless steel strip is summarized in the following table:

Grade	Standard	C	Si	Mn	P	S	Cr	Ni	Mo
201	ASTM A240	≤0.15	≤1.00	≤7.50	≤0.060	≤0.030	16.00-18.00	3.50-5.50	–

201 Stainless Steel Mother Coil Mechanical Property

Grade	Standard	Yield Strength Rp0.2 (N/mm²)	Tensile Strength Rm (N/mm²)	Elongation %	Hardness (HV)	Hardness (HRB)
201	ASTM A240	≥ 275	≥ 520	≥ 35	≤ 260	≤ 101
202	ASTM A240	≥ 275	≥ 520	≥ 40	≤ 218	≤ 95
301	ASTM A240	≥ 205	≥ 520	≥ 40	≤ 200	≤ 90
304	ASTM A240	≥ 205	≥ 515	≥ 40	≤ 210	≤ 92
304L	ASTM A240	≥ 205	≥ 520	≥ 40	≤ 200	≤ 90
316L	ASTM A240	≥ 177	≥ 480	≥ 40	≤ 200	≤ 90
316Ti	ASTM A240	≥ 205	≥ 520	≥ 40	≤ 200	≤ 90
317L	ASTM A240	≥ 205	≥ 515	≥ 40	≤ 218	≤ 95
309S	ASTM A240	≥ 205	≥ 515	≥ 40	≤ 218	≤ 95
310S	ASTM A240	≥ 205	≥ 520	≥ 40	≤ 200	≤ 90

201 Stainless Steel Strip Production Tolerance

Thickness Tolerance:

Thickness(mm)	Width＜125mm	125mm≤Width＜250mm	250mm≤Width＜600mm
≥0.03-0.10	±0.06T	±0.10T	±0.10T
≥0.10-0.15	±0.01	±0.015	±0.020
≥0.15-0.20	±0.015	±0.020	±0.025
≥0.20-0.25	±0.015	±0.020	±0.025
≥0.25-0.30	±0.018	±0.025	±0.030
≥0.30-0.40	±0.020	±0.025	±0.030
≥0.40-0.50	±0.025	±0.030	±0.040
≥0.50-0.60	±0.030	±0.030	±0.040
≥0.60-0.80	±0.030	±0.040	±0.040
≥0.80-1.00	±0.030	±0.040	±0.050
