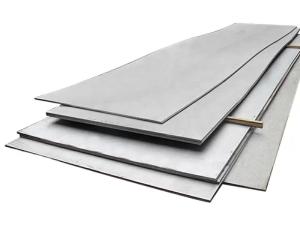

AISI 304 304L Stainless Steel Metal Plate 0.2mm 5.0mm 2B 2D

Product Categories
Wuxi Benchmark Special Steel Co.,Ltd
Contact Now

AISI 304 304L Stainless Steel Metal Plate 0.2mm 5.0mm 2B 2D

Type : Stainless Steel Sheet/Plate/Coil

Grades : 200 series: 201 202 300 series: 301 304 304L 309 310 310s 316 316L 321 400 series: 409 410 410S 420 430

Thickness : 0.2mm – 5.0mm

Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, AS PER CUSTOMER’S REQUIREMENT

Width : 3.2mm – 1500mm

Finish : BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, embossed,perforated,water ripple

Form : plate/sheet

Application : Costruction Industry/Kichten Products/Fabrication Industry/Home Decoration

Contact Now

AISI 304/304L Stainless Steel Plate


Product specification


304 Stainless Steel Plate, is the most popular and economical of the stainless steels. 304 Stainless Plate offers good corrosion resistance to many chemicals as well as industrial atmospheres and marine environments. 304 Stainless Plate may become slightly magnetic when worked and is not heat treatable.

  • Specifications: AISI 304/304L, ASTM A240, AMS 5513/5511
  • Finishes: Slightly Grainy Surface, Non-reflective, Mill Finish
  • Applications: sanitary dairy, beverage and food product handling and processing, hospital equipment, marine hardware, kitchen appliances, back splashes, etc.
  • Workability: Easy to Weld, Cut, Form and Machine with proper equipment
  • Mechanical Properties: Nonmagnetic, Tensile = 85,000 +/-, Yield = 34,000 +/-,
    Brinell = 170
  • How is it Measured? thickness X width X length
  • Available Stock Sizes: 1ft x 1ft, 1ft x 4ft, 2ft x 2ft, 2ft x 4ft, 4ft x 4ft, 4ft x 8ft, or Cut to Size




Chemical Composition of Stainless Steel sheet

TypeGradeGradeChemical Component %
CCrNiMnPSMoSiCuNOther
Austenitic201SUS201≤0.1516.00-18.003.50-5.505.50－7.50≤0.060≤0.030-≤1.00-≤0.25-
202SUS202≤0.1517.00-19.004.00-6.007.50-10.00≤0.060≤0.030 ≤1.00-≤0.25－
3011.4310≤0.1516.00-18.006.00-8.00≤2.00≤0.045≤0.030-≤1.00-≤0.10-
3041.4301≤0.0717.00-19.008.00-10.00≤2.00≤0.045≤0.030-≤1.00---
304L1.4307≤0.03018.00-20.008.00-10.00≤2.00≤0.045≤0.030-≤1.00---
304H1.49480.04-0.1018.00-20.008.00-10.00≤2.00≤0.045≤0.030-≤1.00---
3091.4828≤0.2022.00-24.0012.00-15.00≤2.00≤0.045≤0.030-≤1.00---
309S*≤0.0822.00-24.0012.00-15.00≤2.00≤0.045≤0.030-≤1.00---
3101.4842≤0.2524.00-26.0019.00-22.00≤2.00≤0.045≤0.030-≤1.50---
310S*≤0.0824.00-26.0019.00-22.00≤2.00≤0.045≤0.030-≤1.50---
3141.4841≤0.2523.00-26.0019.00-22.00≤2.00≤0.045≤0.030-1.50-3.00---
3161.4401≤0.0816.00-18.5010.00-14.00≤2.00≤0.045≤0.0302.00-3.00≤1.00---
316L1.4404≤0.03016.00-18.0010.00-14.00≤2.00≤0.045≤0.0302.00-3.00≤1.00---
316Ti1.4571≤0.0816.00-18.0010.00-14.00≤2.00≤0.045≤0.0302.00-3.00≤1.00-0.1Ti5(C+N)~0.70
317*≤0.0818.00-20.0011.00-15.00≤2.00≤0.045≤0.0303.00-4.00≤1.00-0.1-
317L1.4438≤0.0318.00-20.0011.00-15.00≤2.00≤0.045≤0.0303.00-4.00≤1.00-0.1-
3211.4541≤0.0817.00-19.009.00-12.00≤2.00≤0.045≤0.030-≤1.00--Ti5(C+N)~0.70
321H*0.04-0.1017.00-19.009.00-12.00≤2.00≤0.045≤0.030-≤1.00--Ti5(C+N)~0.70
3471.4550≤0.0817.00-19.009.00-12.00≤2.00≤0.045≤0.030-≤1.00--Nb≥10*C%-1.10
347H1.4940.04-0.1017.00-19.009.00-12.00≤2.00≤0.045≤0.030-≤1.00--Nb≥10*C%-1.10
Duplex2205S32205≤0.0322.0-23.04.5-6.5≤2.00≤0.030≤0.0203.0-3.5≤1.00-0.14-0.20
2507S32750≤0.0324.0-26.06.0-8.0≤1.20≤0.035≤0.0203.0-5.0≤0.800.50.24-0.32
Ferrite409S40900≤0.0310.50-11.700.5≤1.00≤0.040≤0.020-≤1.00-≤0.030Ti6(C+N)~0.50 Nb:0.17
4301Cr17≤0.1216.00-18.00-≤1.0≤0.040≤0.030-≤1.0---
444S44400≤0.02517.50-19.501≤1.00≤0.040≤0.0301.75-2.5≤1.00-0.035Ti+Nb:0.2+4(C+N)~0.80
Martensite4101Cr130.08-0.1511.50-13.500.75≤1.00≤0.040≤0.030-≤1.00---
410S*≤0.08011.50-13.500.6≤1.00≤0.040≤0.030-≤1.00---
4202Cr13≥0.1512.00-14.00-≤1.00≤0.040≤0.030-≤1.00---
420J23Cr130.26-0.3512.00-14.00-≤1.00≤0.040≤0.030-≤1.00---
PH63017-4PH≤0.0715.00-17.503.00-5.00≤1.00≤0.035≤0.030-≤1.003.00-5.00-Nb 0.15-0.45
63117-7PH≤0.0916.00-18.006.50-7.50≤1.00≤0.035≤0.030-≤1.00≤0.50-Al 0.75-1.50
63215-5PH≤0.0914.00-16.003.50-5.50≤1.00≤0.040≤0.0302.00-3.00≤1.002.5-4.5-Al 0.75-1.50

Packaging & Delivery

Packing Details:1.Export sea worthy package + water proof paper + wooden pallet
2.Safe loading and fixing Professional teams
Seaworthy wooden pallet or according to client's requirement
MOQ1 ton or free samples
Price termFOB China port & CIF Destination Port & CFR
Delivery Detail:within 7-10 working days after receiving the deposit or according to your order quantity.


Commitment clause

  • Reliable quality and competitive price
  • Accept any third party test
  • Professional sales team and reliable factory
  • Customized design is available
  • Free sample are available
  • Showing the splendor of your quality
  • Strong corrosion resistance and decorative effect
  • Durable and beautiful in good quality
